SUNRISE 6013

SUNRISE 6013

  • Classification: AWS/ASME SFA-5.1 - E 6013
  • DIN 1913 - E 43 22 R (C) 3
  • EN499 - E 38 0 RC 11

Application/Properties: General-purpose electrode for assembly work, workshop and repair welding, specially suited for vertical-down welding. Good gap bridging. Well suited for tack welding. Can be used on galvanized, primer painted and slightly rusted components. For assembly work, electrode can be used in all position without changing current setting. Smooth, slightly concave welds blending into base metal without undercut. Slag partly self releasing.

Suitable for:
Unalloyed structural steel: St33 to St52-3.
Boiler Plates: HI, HII, 17Mn4.
Pipe Steels: to St52.4, St35.8 to17Mn4, StE210.7 to StE360.7 including corresponding TM-grades.
Fine Grain Structural Steels: StE255 to StE355, WStE255 to WStE355.
Shipbuilding Steels: A, B.
Cast Steel: GS-38 to GS-52

Sizes and Currents AC or DC:

Diameter Length Current (A)
2.5mm 350mm 70 - 90
3.2mm 350mm 90 - 130
4.0mm 350mm 130 - 180
5.0mm 350mm 180 - 230

FOR POSITIONAL WELDING A MAXIMUM OF 4 MM SIZE IS RECOMMENDED.

Weld metal analysis:

C Si Mn
0.08 0.3 0.5

Mechanical properties of all weld metal:

Yield Strength >390 N/mm2
Tensile Strength 470 - 590 N/mm2
Elongation L.=5D. >22%
Impact Strength 80 J at +20oC
50 J at 0oC

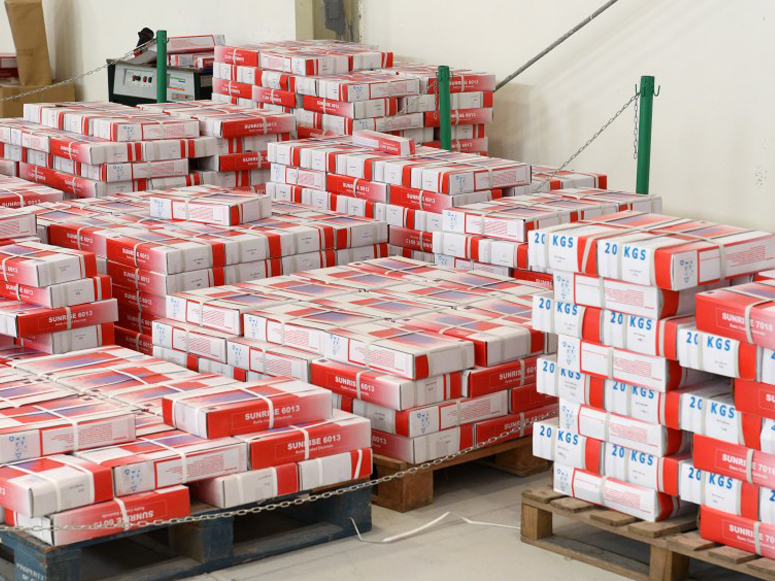

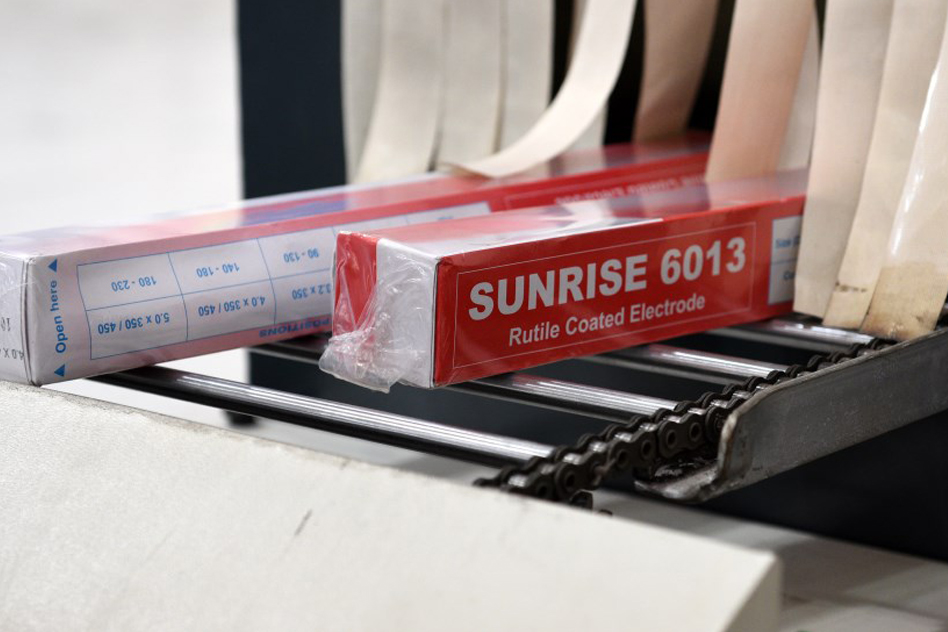

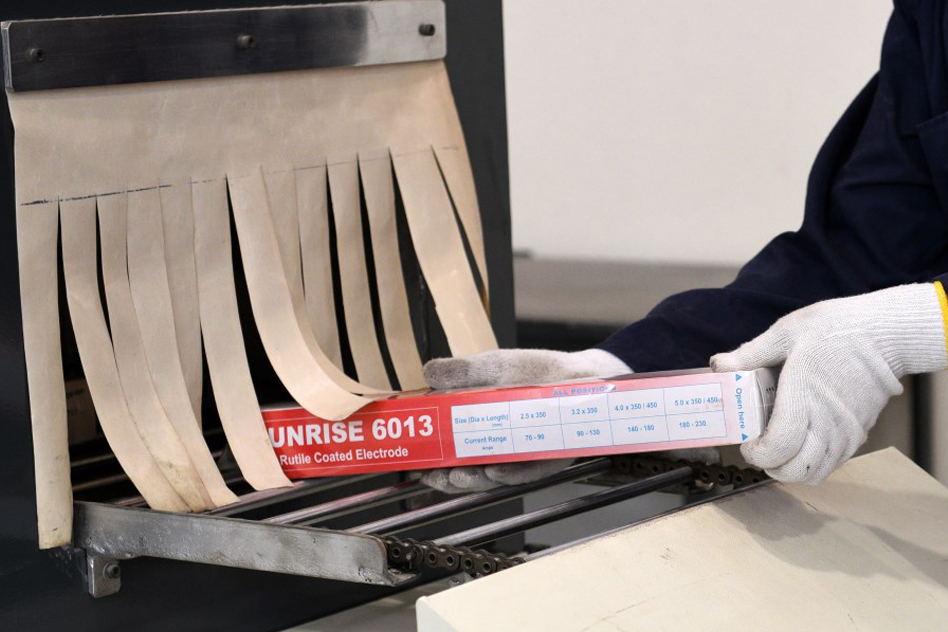

Packaging:

2.5, 3.2, 4.0 & 5.0mm 4x5kg. packet/carton
>1 MT/pallet
