SUNRISE 7018

SUNRISE 7018

  • Classification: AWS/ASME SFA-5.1 - E 7018
  • DIN 1913 - E 51 55 B 10
  • EN499 - E 42 6 B 42 H10

Application/Properties: Electrode for producing crack-free welded joints with good toughness properties even on steels having carbon content up to 0.4%. Weld metal recovery is approx. 120%. Good operating characteristics also in positional welding. Weld metal exhibits good toughness properties down to -60 C. Electrode is suitable for depositing buffer layers on steels having higher carbon content.

Suitable for:
Unalloyed structural steel: St33 to St52-3, St50-2 to St60-2.
Boiler Plates: HI, HII, 17Mn4.
Pipe Steels: to St52.4, St35.8 to 17Mn4, StE210.7 to StE360.7 including corresponding TM-grades.
Fine Grain Structural Steels: StE255 to StE355, WStE255 to WStE355, TStE255 to TStE355.
Shipbuilding Steels: A, B, D, E.
Cast Steel: GS-38 to GS-52.

Rebaking required at 250 – 350oC for two hours.

Sizes and Currents AC or DC+:

Diameter Length Current (A)
2.6mm 350mm 70 - 100
3.2mm 450mm 90 - 140
4.0mm 450mm 140 - 190
5.0mm 450mm 190 - 250

FOR POSITIONAL WELDING A MAXIMUM OF 4 MM SIZE IS RECOMMENDED.

Weld metal analysis:

C Si Mn
0.08 0.5 1.1

Mechanical properties of all weld metal:

Yield Strength >420 N/mm2
Tensile Strength 500 - 640 N/mm2
Elongation L.=5D. >22%
Impact Strength 200 J at +20oC
100 J at –60oC

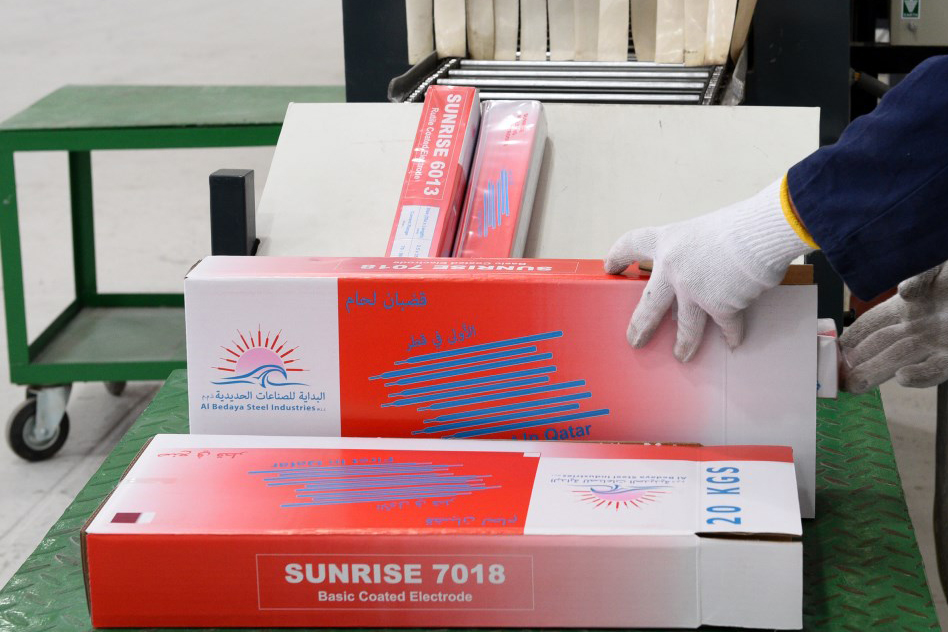

Packaging:

2.6mm 8x2.5kg.packet/carton
3.2, 4.0 & 5.0mm 4x5kg. packet/carton
>1 MT/pallet
